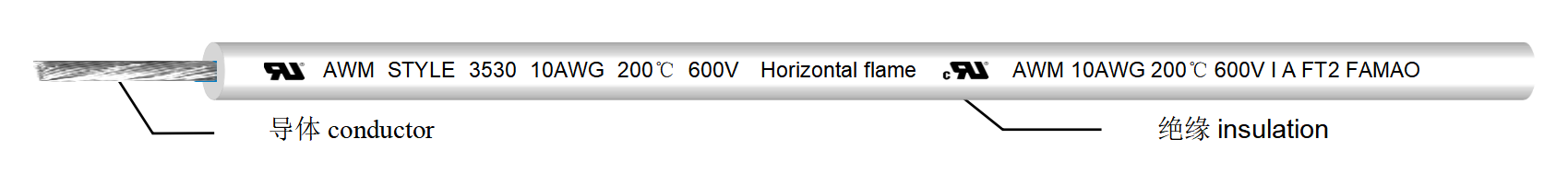

UL3530硅橡胶电线 UL3530 Silicone Rubber Wire
- 额定定溫度：-40～+200℃，额定电压：600V。
- 导体:24-4/0AWG，实芯或绞合镀锡铜线。
- 绝缘采用:硅橡胶。公差±0.10~0.60mm
- 标准：UL758,UL1581，可通過ULHorizontal flame、CUL FT2耐燃试验。
- 使用标准厚度，易剝、易裁。
- 具有优良热稳定和机械耐磨及电绝缘性能，可抗高低温、抗紫外线、不老化。
- 广泛应用于航空、冶金石油、电子电气、仪器仪表、家用电器、灯饰照明、变压器及电机引出线、汽车电线等。
- Rating:: -40～+200℃, Rated voltage: 600 volts.
- Conductor: Solid or stranded, tinnedcopper, 24-4/0AWG.
- Insulation： Color-Coded Silicone Rubber.
- Reference standards: UL758, UL1581, passes ULHorizontal flame CUL FT2 flame test
- Uniform insulation thickness of wire to ensure easy stripping and cutting.
- Resistant tohigh and low temperatures, UV rays, and does not age.
- Widely applied in aviation; metallurgy and petroleum industry as well as applied in other products such as: electronic instrument & device, electrical appliance, leads for transformer & electrical motor.
